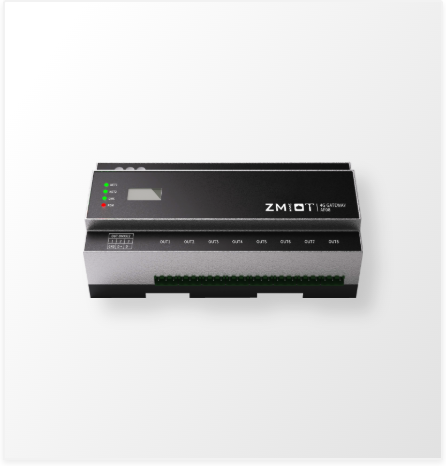

Rail-mounted Remote Control / ZM-AF08
Product Overview
This professional DMX lighting controller precisely adjusts LED brightness, color, and dynamic effects. Ideal for stage lighting, architectural illumination, landscape lighting, entertainment venues, and smart homes, it delivers a flexible and stable lighting control solution.
Product Features
- 1、DIN35mm DIN rail mount.
- 2、Supports standard Art-Net protocol and Madrix software control.
- 3、Supports single-color, dual-color, RGB, RGBW, RGBWMY, and multi-color mixing control.
- 4、The software includes a gamma correction algorithm for enhanced color performance in lighting fixtures.
- 5、The OLED display module shows device parameters in real time, including MAC address, IP address, and port number.
- 6、Customize the channel order for fixtures on each port.
| Technical Specifications | |
| Operating Voltage | DC 24V (9-24V transformer) |
| Communication Interface | 2*LAN 10/100/1000M |
| Address Writing Feature | One-Click Address Entry |
| Load Capacity | 8*512/1024/1536/2048 Channel |
| Interface Type | 3-pin |
| Max Power Consumption | 5W |
| Operating Temperature | -40-80℃ |
| Environment Humidity | 5-95% (Frost-Free) |
| Environment Parameters | |
| Weight | 0.5KG |
| Housing | Black |
| Installation Method | DIN35mm Rail-Mounted |
| Ingress Protection Rating | IP4 |
| Structure Parameters | |
| Input Protocol | Art-NET |
| Frame Rate | 1-30 fps (adjustable) |
| Code Writing | UCS512-A/B/C/D/E, SM16512-3/4ch |
| Device Dimensions | L: 185mm; W: 90mm; H: 58mm |
