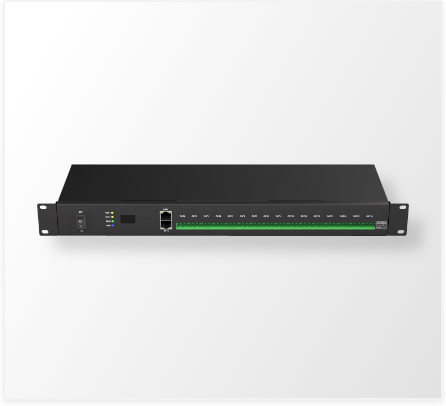

Sub-control-19 inch /ZM-AF16K
Product Overview
This professional DMX lighting controller precisely adjusts LED brightness, color, and dynamic effects. Ideal for stage lighting, architectural illumination, landscape lighting, entertainment venues, and smart homes, it delivers a flexible and stable lighting control solution.
Product Features
- 1、19-inch 1U rack-mountable.
- 2、Supports standard Art-Net protocol and Madrix software control.
- 3、Supports single-color, dual-color, RGB, RGBW, RGBWMY, and multi-color mixing control.
- 4、The software includes a gamma correction algorithm for enhanced color performance in lighting fixtures.
- 5、The OLED display module shows device parameters in real time, including MAC address, IP address, and port number.
- 6、Customize the channel order for fixtures on each port.
| Technical Specifications | |
| Communication Interface | 2*LAN port |
| Communication Protocol | Art-net |
| Load Capacity | 16*512/1024 Channel |
| Operating Voltage | AC20V |
| Environment Parameters | |
| Installation Method | 19-inch 1U Rack-Mountable/Floor-Standing |
| Operating Temperature | -30°C to 75°C |
| Humidity Range | 0% to 90% |
| Ingress Protection Rating | IP30 |
| Structure Parameters | |
| Housing Material | Premium electrolytic galvanized steel + powder coating |
| Surface Color | Black |
| Standard Attachment | Power cord *1, terminal block *16 |
| Device Dimensions | L: 485mm; W: 136mm; H: 45mm |
