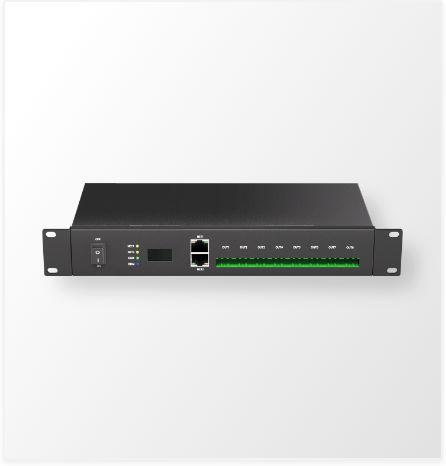

Sub-control-12 inch /ZM-AF8K
Product Overview
This professional DMX lighting controller precisely adjusts LED brightness, color, and dynamic effects. Ideal for stage lighting, architectural illumination, landscape lighting, entertainment venues, and smart homes, it delivers a flexible and stable lighting control solution.
Product Features
- 1、Supports standard Art-Net protocol and Madrix software control.
- 2、Supports single-color, dual-color, RGB, RGBW, RGBWMY, and multi-color mixing control.
- 3、The software includes a gamma correction algorithm for enhanced color performance in lighting fixtures.
- 4、The OLED display module shows device parameters in real time, including MAC address, IP address, and port number.
- 5、Customize the channel order for fixtures on each port.
- 6、Supports online lamp coding and port reuse.
| Technical Specifications | |
| Operating System | Linux |
| Processor | Intel Core i7 11-Gen Processor, Quad-Core with 8 Threads |
| Memory | 16GB |
| Hard drive | 128GB SSD+1TB Hard Drive |
| Environment Parameters | |
| Installation Method | 12-inch 1U Rack-Mountable/Floor-Standing |
| Operating Temperature | -30°C to 75°C |
| Humidity Range | 0% to 90% |
| Ingress Protection Rating | IP30 |
| Structure Parameters | |
| Housing Material | Premium electrolytic galvanized steel + powder coating |
| Surface Color | Black |
| Standard Attachment | Power supply cable *1, 3 terminal block *8 |
| Device Dimensions | L: 320mm; W: 136mm; H: 45mm |
