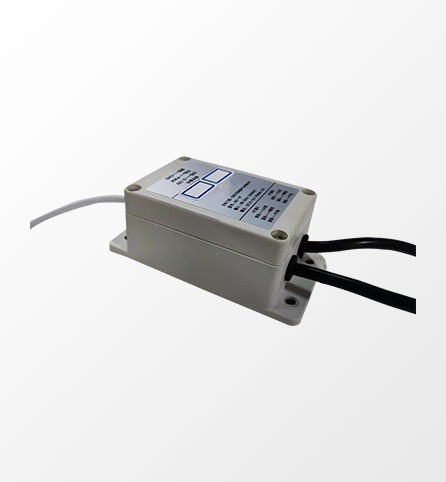

PLC Single-Light Controller / ZM-DK04

Product Overview

Leverages Huawei HiSilicon's latest PLC-IoT broadband power line communication technology to enable communication over existing power lines, eliminating the need for additional wiring and reducing installation costs. Supports remote on/off control of streetlights, energy metering, fault detection, data retention during power loss, stepless LED dimming, online firmware updates, threshold configuration, and leakage alarms. Ensures adaptive dimming and demand-based lighting while integrating advanced energy-saving technologies, reducing overall urban streetlight electricity consumption by approximately 40% and cutting maintenance labor and material costs (inspection fees) by up to 60%. This significantly enhances social energy conservation benefits.

Product Features

1: PLC Power Line Communication
2, Supports 0-10V/PWM Dimming
3 NTP Time Synchronization
4: Supports scheduled control
5 Indicator Status Feedback
6: Real-time Work Status Collection
7 Current, Voltage, and Power Acquisition
8 No additional wiring required

Electrical Parameters	Relay Parameters	Single-channel, 250V/10A
	Voltage Range	AC 110-265V
	Frequency Range	50-60HZ
	Current range	0-2A
	Static Power	<2W
	Maximum Load Power	≤100W
Check Parameters	Voltage detection range	85~265V
	Current detection range	0-2A
	Data detection accuracy	≤1%
Features	Energy Statistics	Read battery level, clearable via command
	Report Error	Manual report, query reports
	Light Fixture Fault Alert	Fixture fault, power supply fault
	Line Alarm	Overvoltage alarm, undervoltage alarm, configurable alarm parameters
Communication Parameters	Communication Method	PLC Power Line Communication
	Communication Speed	Up to 1 Mbps (distance < 40 M), with a maximum range of 10 KM (speed < 5 Kbps)
	Number of connected nodes	A single system can support up to nearly 50000 endpoints.
Environment Parameters	Ambient temperature	-40~+85℃
	Relative Humidity	<95%
	IP Rating	IP65
Structure Parameters	Dimensions	L: 142mm; W: 51mm; H: 38mm
