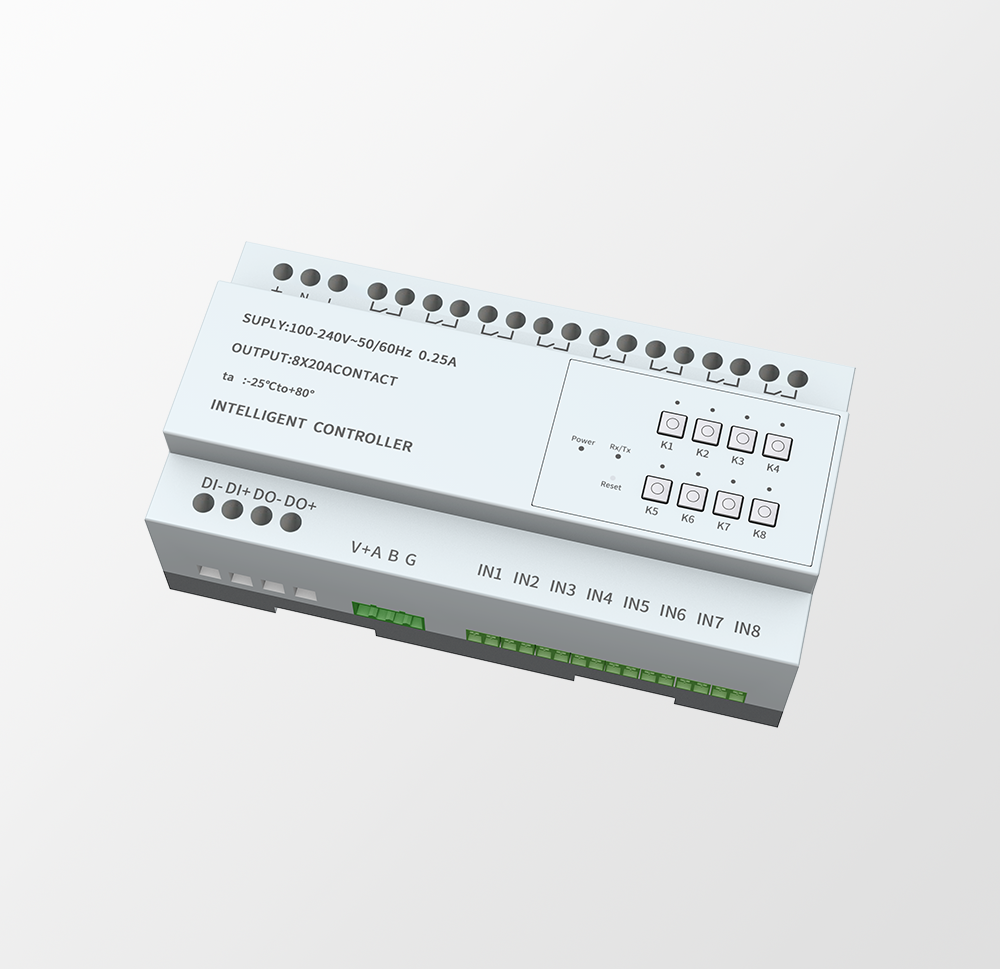

8-channel Digital Input Module / ZM-LS820
Product Overview
8 channels of 20A/mag-hold relay outputs. The device supports standalone operation or integration into multi-device systems, and can be controlled via RS-485 bus with panels, clocks, sensors, and other devices.
Product Features
- 1、8 independent relay outputs, each with a maximum current of 20A.
- 2、Uses latching relays for low power consumption and long service life.
- 3、Supports RS-485 bus communication for multi-device networking.
- 4、Supports scene modes, scheduled tasks, and linked controls.
- 5、Features status feedback and power-off memory.
| Technical Specifications | |
| Relay Type | Latching Relay |
| Output channels | 8 way |
| Maximum Current | 2 Road 0A |
| Operating Voltage | AC 10-220V |
| Communication Interface | RS-485 |
| Communication Protocol | MODBUS-RTU |
| Operating Temperature | -20°C to 60°C |
| Ingress Protection Rating | IP30 |
| Structure Parameters | |
| Housing Material | Flame Retardant ABS |
| Installation Method | DIN rail mounting |
| Device Dimensions | L:180mm*W:90mm*H:65mm |
| Wiring method | Screw terminal |
