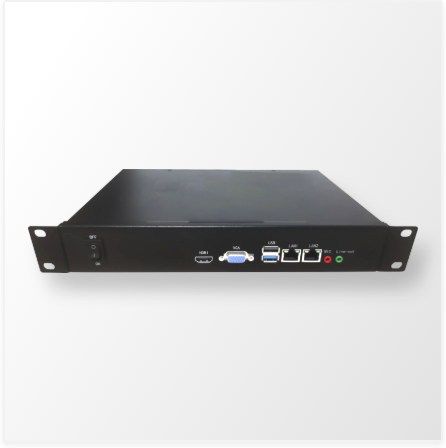

Super Master Controller / ZM-GC1000
Product Overview
This LED lighting control system is purpose-built for urban landscape illumination projects. It integrates master lighting control, power grid gateways, and multiple synchronization timing functions into a single unit. With a built-in web server, it supports centralized cloud-based control as well as standalone offline operation, enhancing both usability and reliability.
Product Features
- 1、The device features an i5 processor and is deeply developed on the Linux system, integrating lighting master control, network time synchronization, and other functions. It supports up to 160 K channels.
- 2、Supports remote video program distribution, playback management, parameter configuration, program editing, file management, system settings, quick network setup, absolute/relative frame synchronization, remote administration, and remote firmware upgrades.
- 3、Supports mainstream video formats, auto-scales video dimensions, offers independent RGB brightness control, and Gamma correction.
- 4、Supports lighting control, power control, remote meter reading, door/window detection, and more.
- 5、Supports automatic, scheduled, and holiday preset effect playback.
| Technical Specifications | |
| Rated Voltage | AC 100V~240V±15% Vac 50/60Hz |
| Rated Power | ≤45W |
| Control Color | Monochrome, Dual-color, RGB (three primary colors), RGBW (four primary colors), RGBWY, and more |
| Load Capacity | 128 Sub-control Units |
| Communication Speed | 100MB/1000MB adaptive |
| Input Port | HDMI Port X1/VGA Port X1 |
| Configure Port | RJ-45 Port X2, Standard Art-Net Protocol |
| Gray Level | Level 256 to Level 65536 |
| Relative Humidity | ≤95% (no condensation) |
| Operating Temperature | -40℃-80℃ |
| Installation Method | 12-inch 1U Rack-Mountable/Floor-Standing |
| Device Dimensions | L: 320mm; W: 170, 80mm; H: 45mm |
