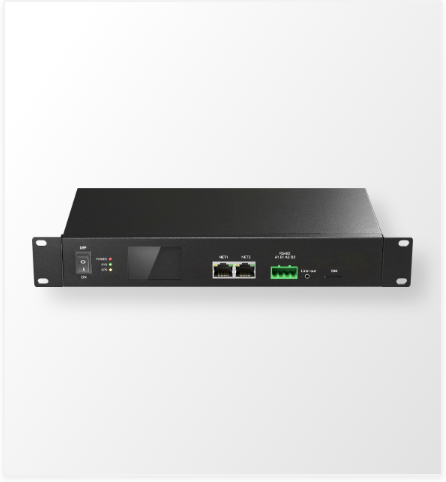

Master / ZM-GC600

Product Overview

This LED lighting control system is purpose-built for urban landscape illumination projects. It integrates a master light controller, 4G router (global network compatibility), power line gateway, and multiple synchronization clocking functions. Featuring a built-in web server, it supports both cloud-based centralized control and standalone offline operation, enhancing usability and reliability.

Product Features

1 Features a domestic high-performance SoC running on a deeply customized Linux system. It integrates lighting master control, 4G router (carrier-agnostic), power line gateway, and network time synchronization in one unit, supporting up to 80 channels.
2 Supports remote video program delivery, playback management, parameter configuration, program editing, file management, system settings, quick network setup, absolute/relative frame synchronization, remote administration, and remote firmware upgrades.
3 Supports mainstream video formats, automatically adapts video dimensions, and enables independent brightness control for RGB channels with Gamma correction.
4 Supports lighting control, high-voltage control, remote meter reading, door open/close detection, and more.

Technical Specifications
	Operating System	Embedded Linux Operating System
	How to use	On-premises / Cloud
	Communication Interface	2LAN port, 1USB, 1HDMI, 1MIC3.5, 1*RS485
	Communication Protocol	TCP/UDP/MQTT/MODBUS/Bypass/Art-net
	Load Capacity	DMX sub-control: 64 units, Power module: 32 units
	Sync Mode	NTP/GPS
	Operating Voltage	AC20V
	Storage medium	SSD16 Solid State Drive
Environment Parameters
	Installation Method	12-inch 1U Rack-Mountable/Floor-Standing
	Operating Temperature	-30°C to 50°C
	Humidity Range	0% to 90%
	Ingress Protection Rating	IP30
Structure Parameters
	Housing Material	Premium electrolytic galvanized steel + powder coating
	Surface Color	Black
	Standard Attachment	Power cord, WiFi antenna
	Device Dimensions	L:322mm; W:136mm; H:45mm
