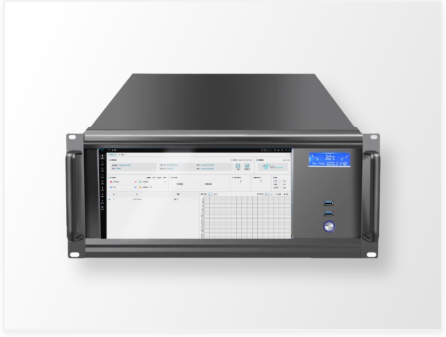

Smart Lighting Data Engine / ZM-LPC-X
Product Overview
This high-performance professional lighting control system, developed by Zhongwei, is built on a deeply customized Linux platform. It features a 11.6-inch HD capacitive touchscreen, supports 3.5mm audio output, dual Gigabit Ethernet ports, and dual RS485 ports. The system enables strong current module control, DMX/RDM monitoring, panel operation, and offers both local and cloud-based management.
Product Features
- 1、Supports 3.5mm audio output, dual Gigabit Ethernet ports, dual RS485 ports, DMX/RDM detection, pre-power module control, panel control, and local/cloud platform control.
| Technical Specifications | |
| Operating System | Linux |
| Processor | Intel Core i7 11-Gen Processor, Quad-Core with 8 Threads |
| Memory | 16GB |
| Hard drive | 128GB SSD+1TB Hard Drive |
| Show | 11.6-inch HD capacitive touch screen |
| Network | 2*RJ45 Gigabit Ethernet Port |
| Audio | Supports MIC/Line-out amplifier |
| Video | Supports HDMI output; HDMI input (optional) |
| Load Capacity | 384 sub-control units, 64 power modules |
| Operating Voltage | AC 220V |
| Operating Temperature | -10℃-60℃ |
| Operating Humidity | 5%-95% relative humidity, no condensation |
| Installation Method | 19-inch 4U Rack-Mounted |
| Device Dimensions | L: 482mm; W:480mm;H: 179mm |
