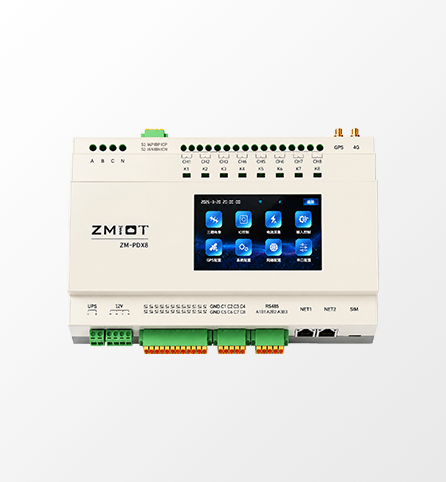

City-level lighting terminal /ZM-PDX8
Product Overview
The strong-current centralized control terminal features a new domestic hardware platform with an industrial-grade, high-performance embedded architecture. It offers significant application advantages in data transmission for smart homes, smart grids, personal healthcare, and industrial control. The device supports multiple communication interfaces, including RS85, RS32, RJ45, switch quantity interfaces, and various sensor connections. Its intelligent core terminal enables extensive connectivity options and diverse network configurations, delivering stable and reliable smart control solutions for users in architectural media facades, landscape lighting, and light show performances.
Product Features
- 1、4G Wireless Communication
- 2、Wired Network Communication
- 3、4G and Wired Communication: Dual-Redundant Backup
- 4、Built-in eSIM with automatic switching to external SIM
- 5、Military-grade RTC clock chip with annual error under 5 seconds.
- 6、Add GPS/BDS Timing Module (Optional)
- 7、NTP Network Time Synchronization
- 8、External GPS/BDS/ETS Time Source (Optional)
| Electrical Parameters | Operating Voltage | AC20V |
| Input Voltage | AC 00V~260V + 10% Vac, 50/60 Hz | |
| Rated Power | ≤15W | |
| Power Output | 2-channel 1 2Vdc, 200mA Max | |
| Communication Parameters | Communication Network Port | 2-lane 10/100/1000 Mbps |
| Wireless Communication | 4G Full Network Support | |
| RS485 Communication | 2 lanes | |
| RS232 | 1 routes | |
| Time Sync Parameters | Local Time Server | Select one: GPS, BTS, or BDS |
| Timing precision | ±5 seconds/year (cumulative error) without timing module; ±1 seconds/year with built-in timing module | |
| Control Parameters | Load Count | 8 x264 |
| Digital Input | 8 lanes | |
| Load Capacity | x32 Expansion Modules, x10 Current Detection Module | |
| Measurement Parameters | Voltage Measurement | 3 Lane |
| Measurement Range | 0-300V per channel | |
| Measurement accuracy | +0.5%/per channel | |
| Current / Leakage Measurement | 12 Channel (Requires our company's dedicated detection module) | |
| Current Measurement Range | 0-100A per channel (if measurement exceeds 100A, please coordinate in advance; secondary current AC 0-100mA) | |
| Current measurement accuracy | +1%/per channel | |
| Zero-crossing detection | Support | |
| Environment Parameters | Relative Humidity | ≤95% (no condensation) |
| Operating Temperature | -40°C~80°C | |
| Structure Parameters | Device Dimensions | L:210mm; W:135mm; H:56mm |
| Ingress Protection Rating | IP0 | |
| Corrosion Protection Class | Outdoor, Medium Corrosion Resistance (WF1) | |
| Installation Method | 35mm DIN rail mount | |
| Optional Features | Optional | Supports external UPS: ensures continued operation, data storage, and alerts during power outages. |
