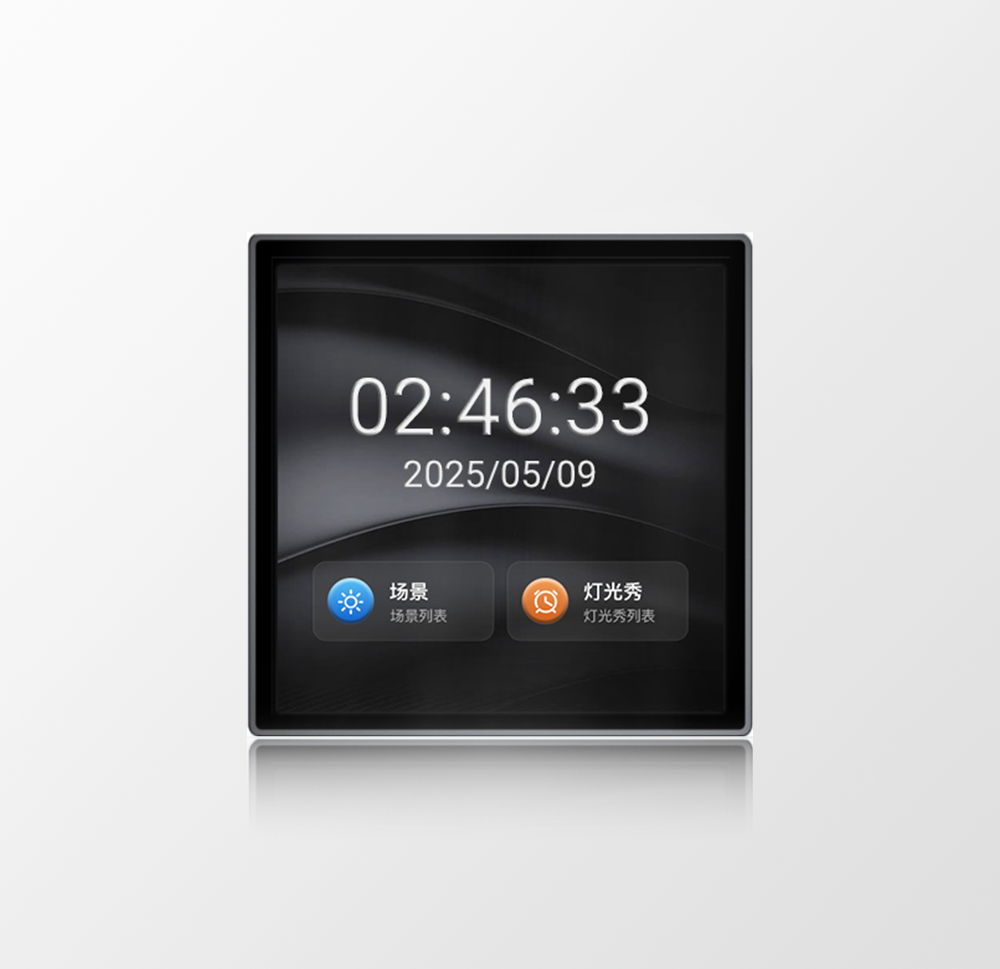

4-inch panel / ZM-PAN4-485
Product Overview
This premium human-machine interaction terminal integrates lighting control, scene switching, and smart automation. Featuring a 4-inch high-sensitivity capacitive touchscreen with multi-protocol support, it is designed for residential, commercial, hospitality, office, and smart city environments.
Product Features
- 1、4-inch high-definition capacitive touchscreen for smooth, responsive operation.
- 2、Supports RS-485, WiFi, and other communication methods.
- 3、Supports scene switching, scheduled tasks, and linked control.
- 4、Supports custom icons with a clean, beautiful interface.
- 5、Supports remote configuration and firmware updates.
| Technical Specifications | |
| Screen Size | 4 inch |
| Screen Type | Capacitive touchscreen |
| Resolution | 800x480 |
| Operating Voltage | DC 12V |
| Communication Interface | RS-485/WiFi |
| Communication Protocol | MODBUS-RTU |
| Operating Temperature | -10°C to 50°C |
| Ingress Protection Rating | IP30 |
| Structure Parameters | |
| Housing Material | Tempered Glass + ABS |
| Installation Method | 86 Wall-Mounted / Flush-Mount |
| Device Dimensions | L:120mm*W:120mm*H:15mm |
| Surface Color | Black/White |
