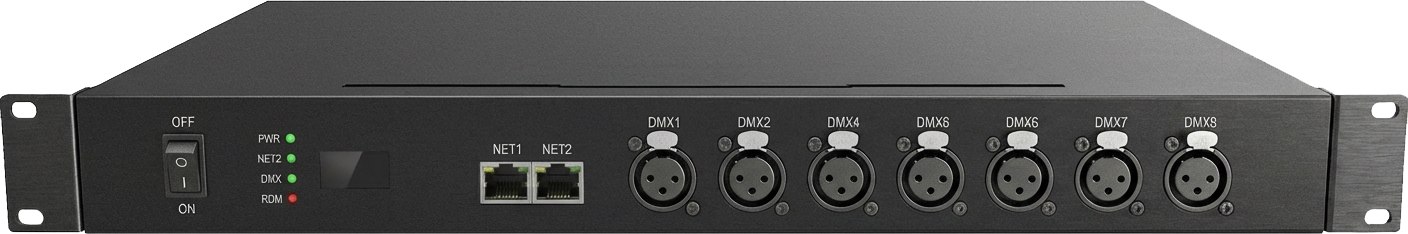

Split Control - 19 inch /ZM-ART8E
Product Overview
This professional DMX lighting controller precisely adjusts LED brightness, color, and dynamic effects. Ideal for stage lighting, architectural illumination, landscape lighting, entertainment venues, and smart homes, it delivers a flexible and stable lighting control solution.
Product Features
- 1、Supports standard Art-Net protocol and is compatible with mainstream lighting control software.
- 2、Supports multi-color mixing control for single-color, dual-color, RGB, RGBW, and RGBWMY.
- 3、Built-in professional gamma correction algorithm for superior color performance in lighting fixtures.
- 4、19-inch rack-mount design, compatible with standard server racks.
| Technical Specifications | |
| Operating System | Embedded Linux Operating System |
| How to use | On-premises / Cloud |
| Communication Interface | 2*LAN port, 1*USB, 1*RS485 |
| Communication Protocol | TCP/UDP/MQTT/MODBUS/Art-net |
| Load Capacity | DMX remote control: 32 units |
| Sync Mode | NTP/GPS |
| Operating Voltage | AC20V |
| Storage medium | SSD Solid State Storage |
| Environment Parameters | |
| Installation Method | 19-inch rack |
| Operating Temperature | -30°C to 50°C |
| Humidity Range | 0% to 90% |
| Ingress Protection Rating | IP30 |
| Structure Parameters | |
| Housing Material | Premium electrolytic galvanized steel + powder coating |
| Surface Color | Black |
| Standard Attachment | Power cord, rack-mount kit |
| Device Dimensions | L: 485mm; W: 200mm;; H: 45mm |
